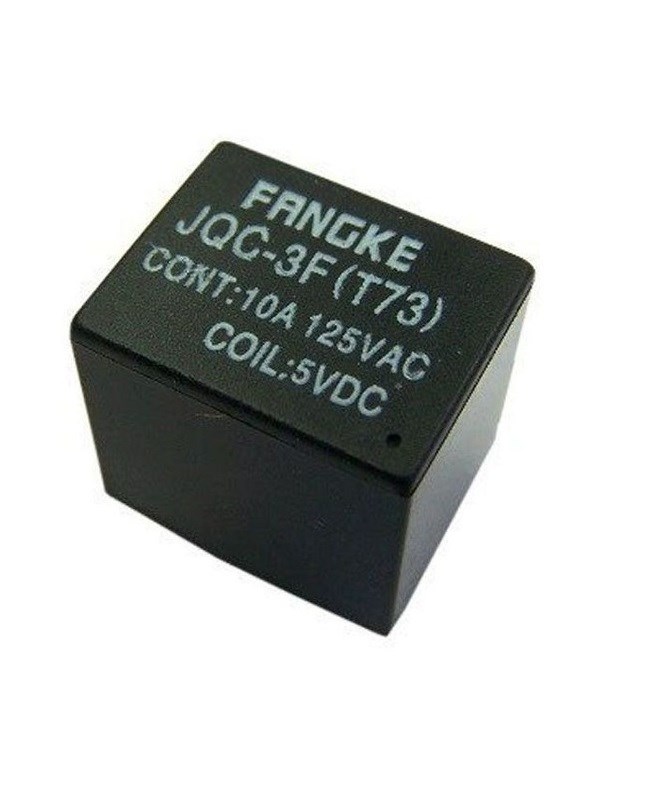

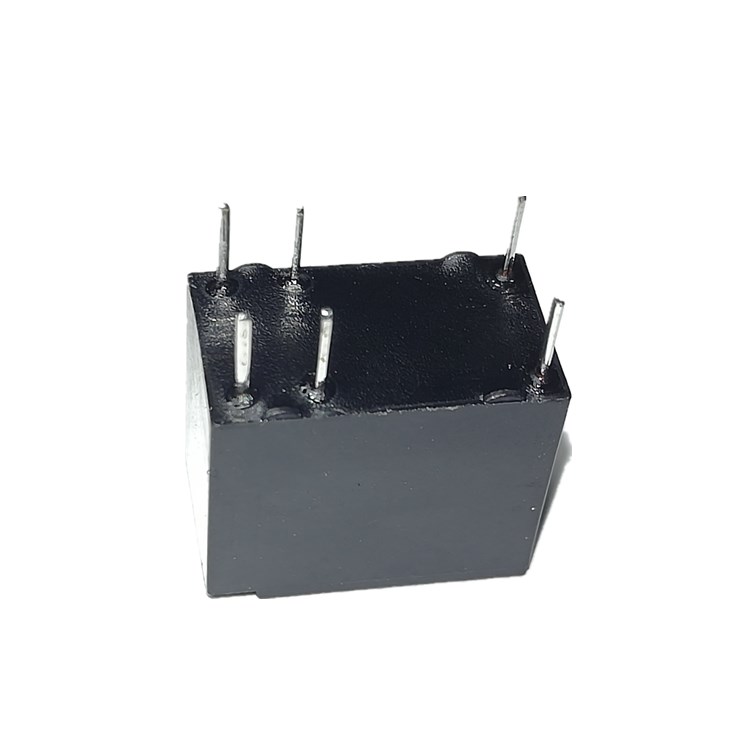

5V DC Röle 125VAc 10A 5 Pin FANGKE JQC-3F(T73) Röle
CLASSIFICATION PCB RELAY Appearance JQC－3F(T73) Outline Dimension(L×W×H) (mm) 19×15.5×15.5 Contact Form 1A，1B，1C Contact Resistance 100mΩ Coil Voltage 5VDC～48VDC Pick-up Voltage ≤75％Release Voltage ≥10％Coil Power(W) 0.36 Contact Rating 10A/15A 120VAC 7A/10A 240VAC 10A/15A 28VDC Insulation Resistance 100MΩ Dielectric Strengh Between Open Contact 750VAC Between Coil and Contact 1500VAC Life Electrical 1×105Mechanical 1×107Temperature Range -40～+70°CTerminal Layout Mounting Holes(mm) Mounting Form PCB Terminal Weight 10g Salty Approval UL Cross-Reference OMRON:G5L P&B:T73;NALS:JS HKE:HRS4 GOOD SKY:RW,RWH
