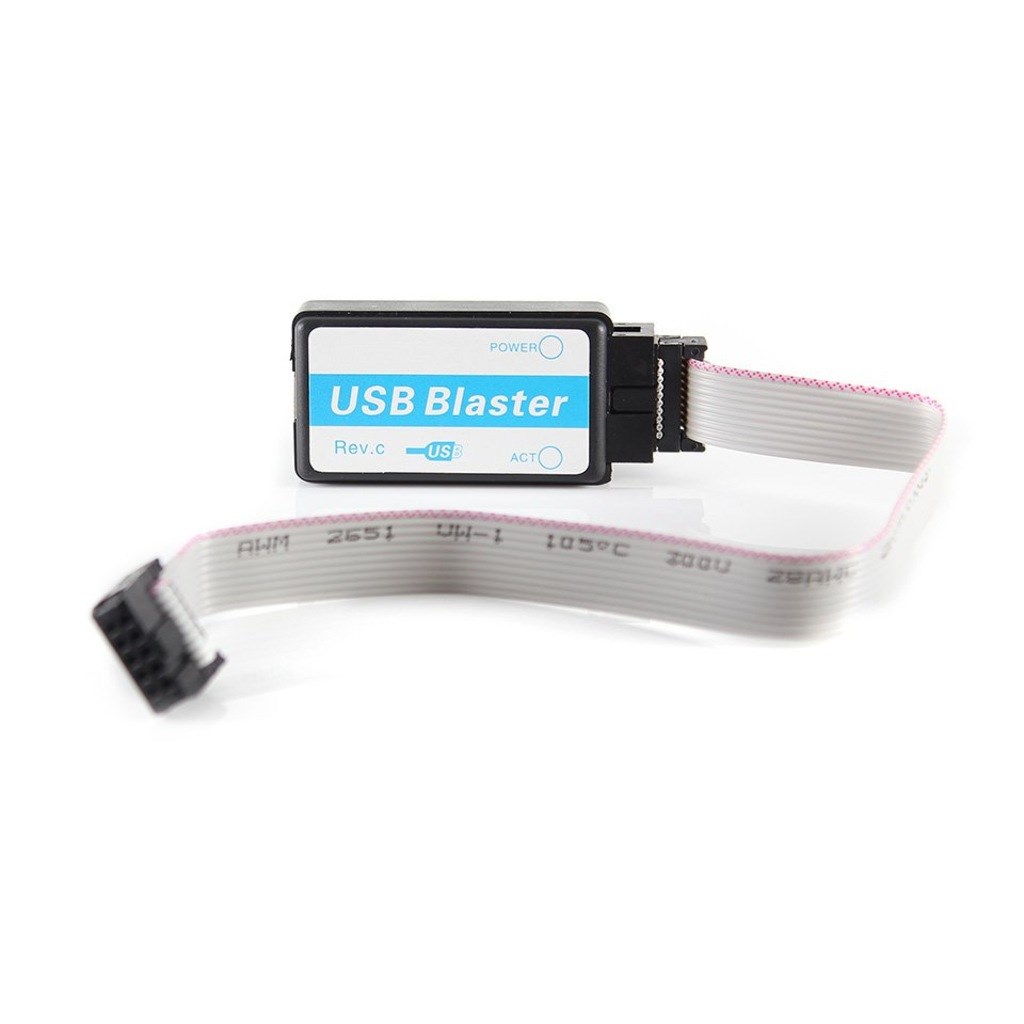

ALTERA USB Blaster ByteBlaster II CPLD FPGA + Jtag Kablolu

Açıklama

ALTERA USB Blaster ByteBlaster II CPLD FPGA + Jtag Kablolu

For CPLD FPGA NIOS JTAG Altera Programmer

( Oem üretim klon üründür. )

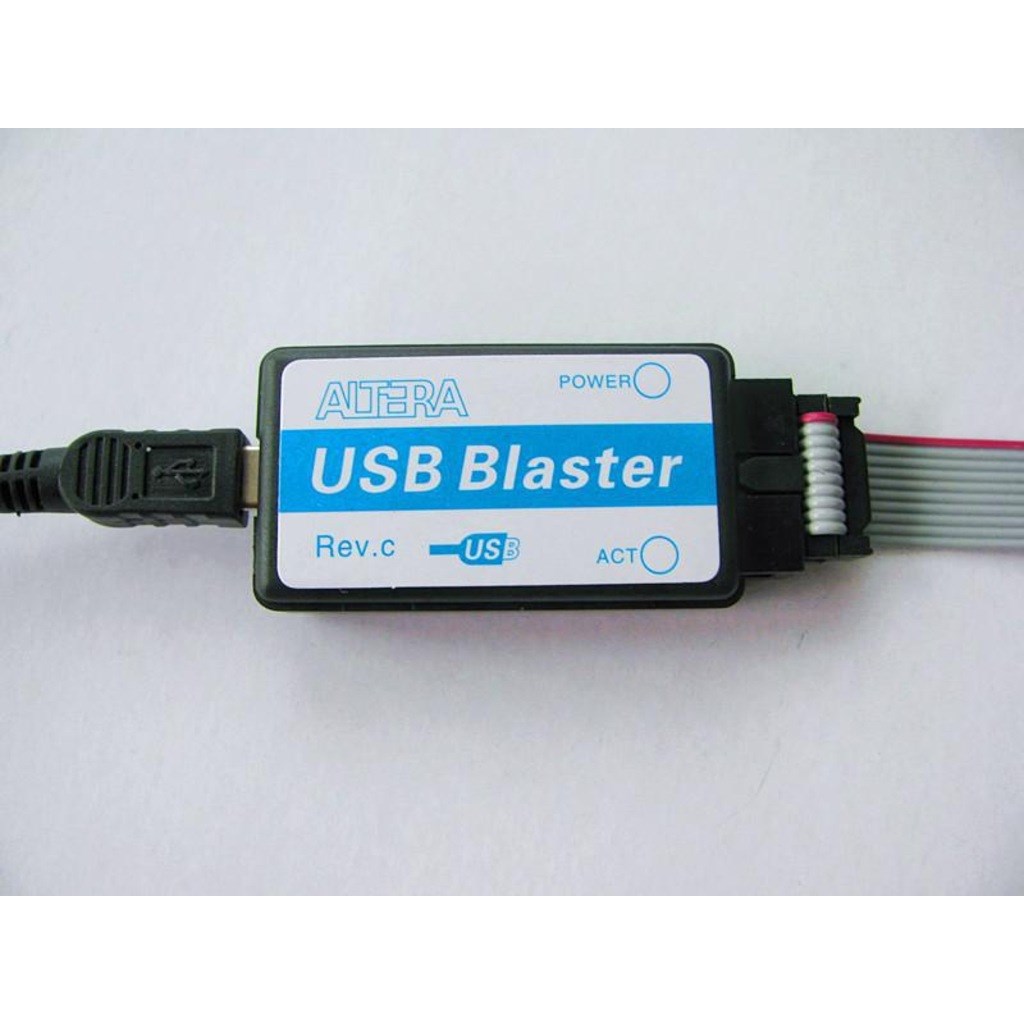

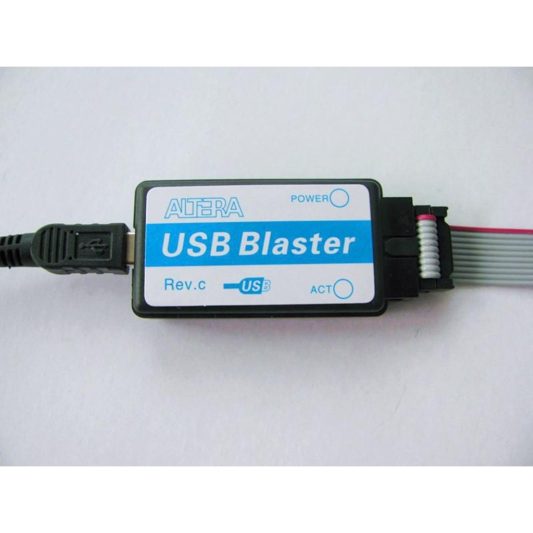

•      ALTERA USB Blaster
•      USB interface
•      Support 1.5V,1.8V,2.5V,3.5V and 5.0V.
•      Stable support SignalTap II embedded logic analyzer function
•      Support all ALTERA products FPGA/CPLD
•      CPLD: MAX3000, MAX7000, MAX9000 and MAXII
•      FPGA: Stratix, Stratix II, Stratix III, Cyclone, Cyclone II, Cyclone III, ACEX1K, APEX20K, FLEX10K, etc
•      Tested chip using this tool is: Cyclone (EP1C3, EP1C6, EP1C12, EP1C20) ; Cyclone II (EP2C5, EP2C8, EP2C35) ; Stratix (EP1S10, EP1S20, EP1S25) ; Stratix II(EP2S60) ; FLEX10K(EPF10K10, EPF0K30) ; ACEX1K(EP1K30) ; MAX7000(MAX7128SLC84, MAX7128) ; AETC100(MAX3000, MAX3128) ; MAXII(MAXII240, MAXII570, MAXII1270) ; EPCS(EPCS1, EPCS4, EPCS16) ; EPC(EPC1, EPC4)
•      Supports Nios II of embedded processor communication and debugging
•      Support Quartus II 4.0  or newer version;
•      The active serial the the Configuration Devices: EPCS1, EPCS4 EPCS16 EPCS64 etc.
•      The enhanced configuration devices: EPC1, EPC4.
•      Supports AS, PS, JTAG three download modes  ( with Verify and BankCheck function) .
•      High-speed download, stable, and internal FT245R+CPLD designed
•      Speed: 6 times faster than the commonly used parallel port download cable ByteBlasterII;

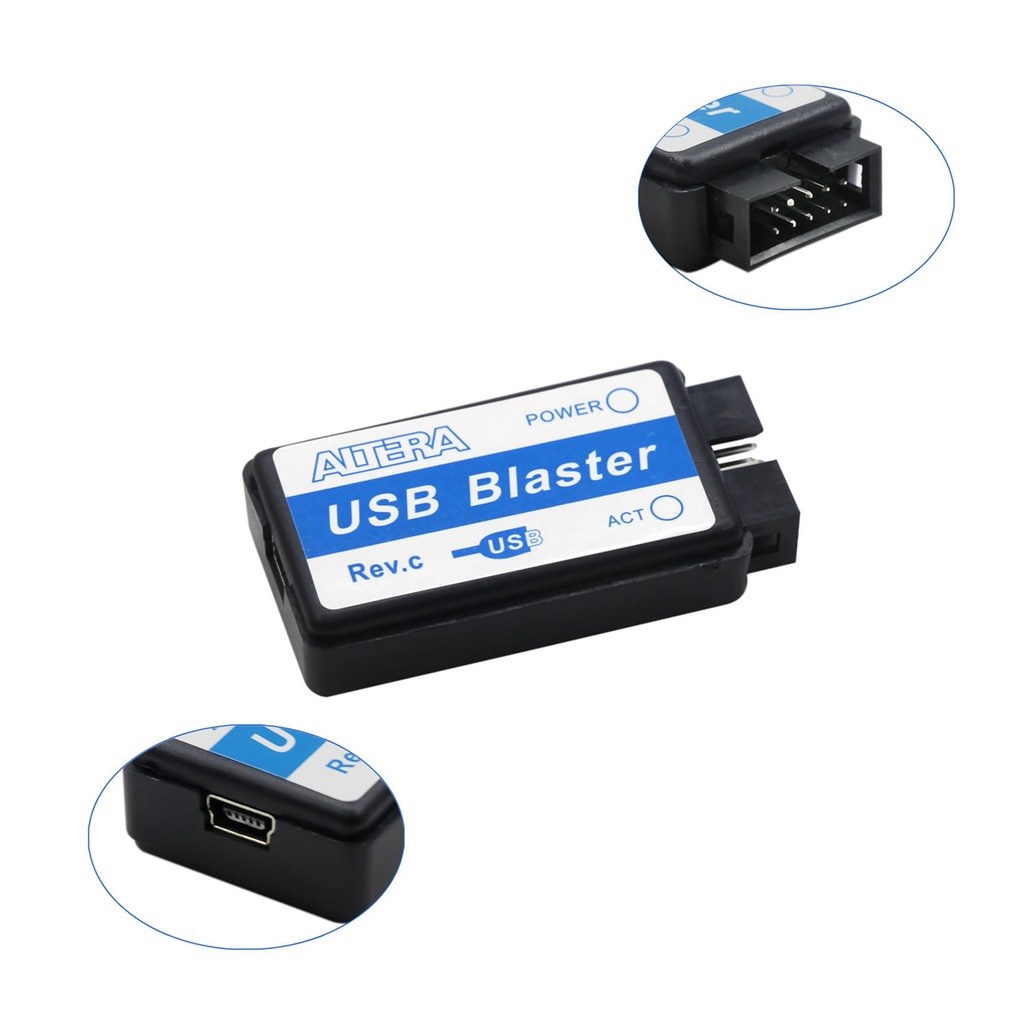

•      Easy to use: MiniUSB interface, easy connection, two status indicator makes debugging more handy.
•      Must: laptop has almost eliminated the parallel port, so commonly used ByteblasterMV and ByteblasterII download cable have not used in a notebook for laptop users, it is convenient to use USB download cable is a must.
•      Support Windows XP, windows 10, Windows 7 and Linux
•      Faster — about 6 times than ByteblasterII

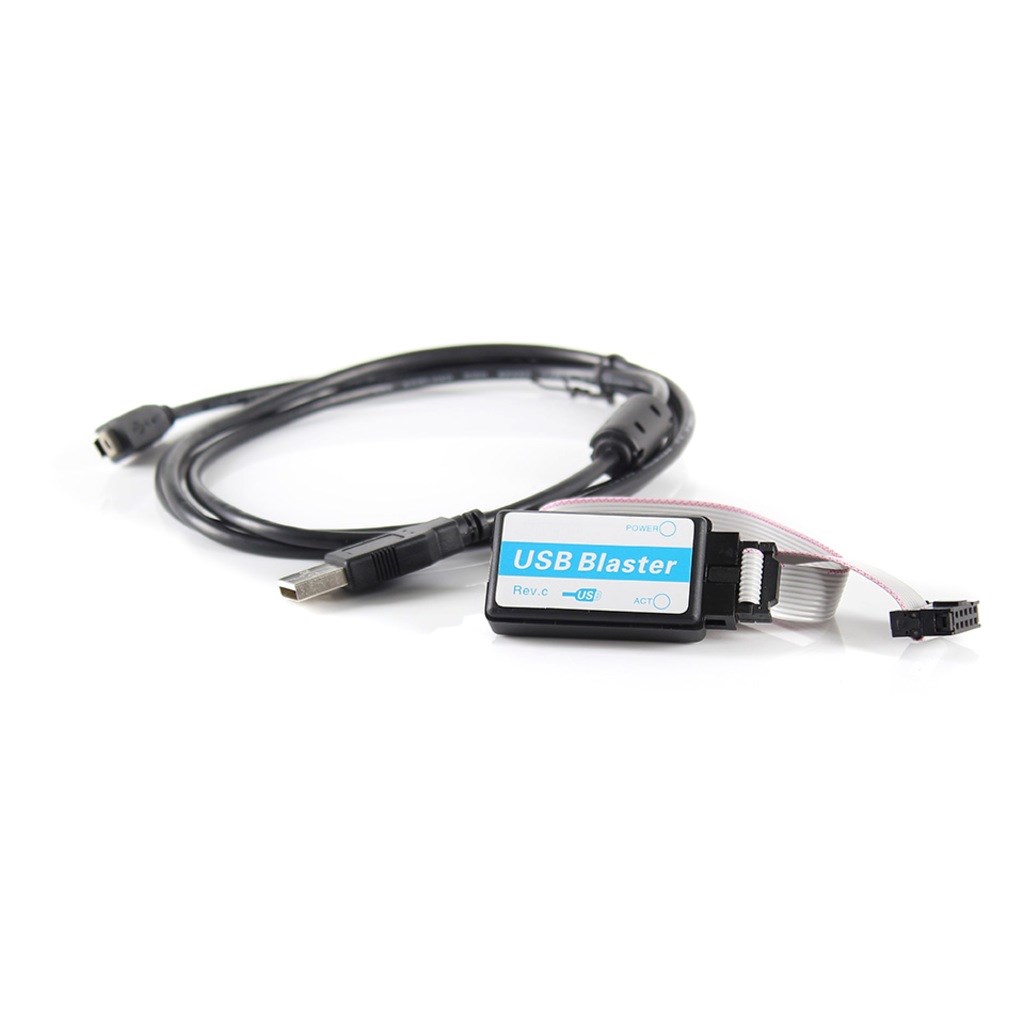

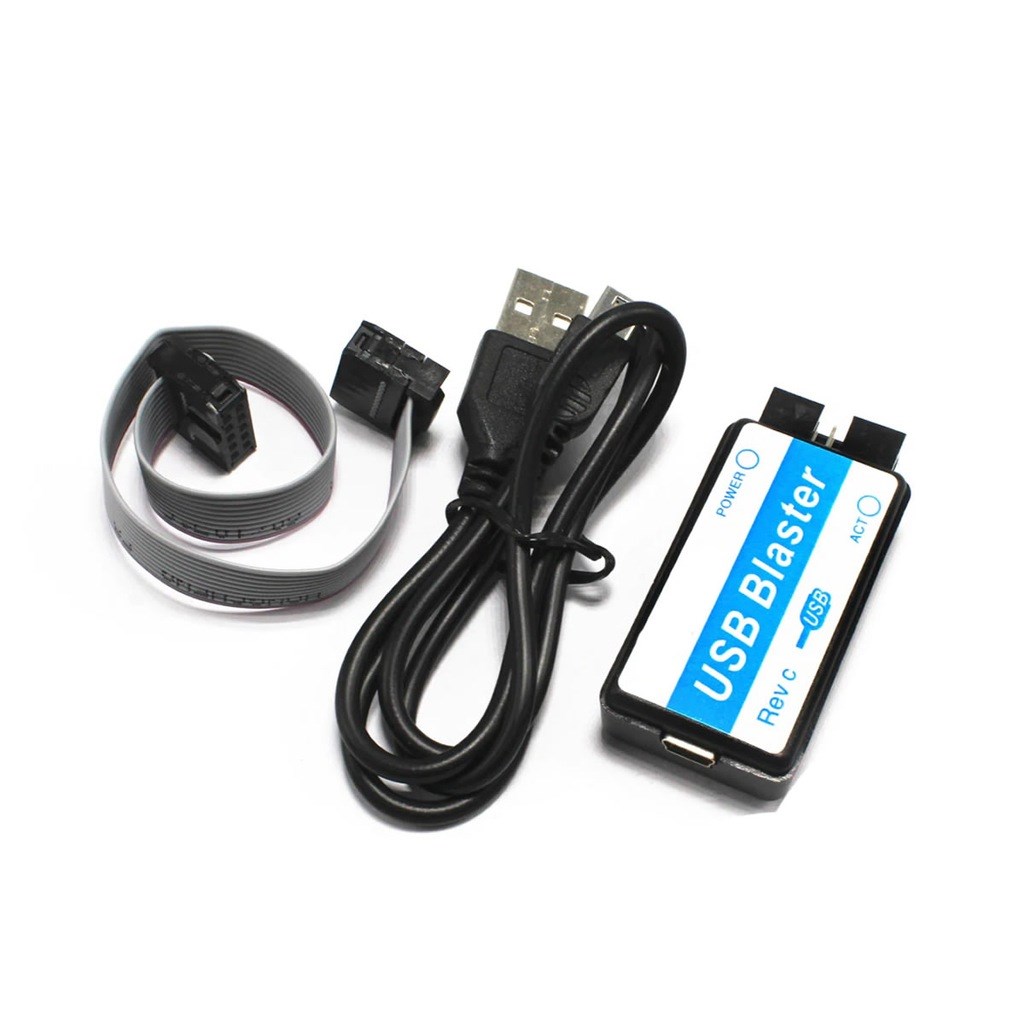

Paket içeriği :

•      1 adet Altera USB Blaster
•      1 adet Mini USB Kablo

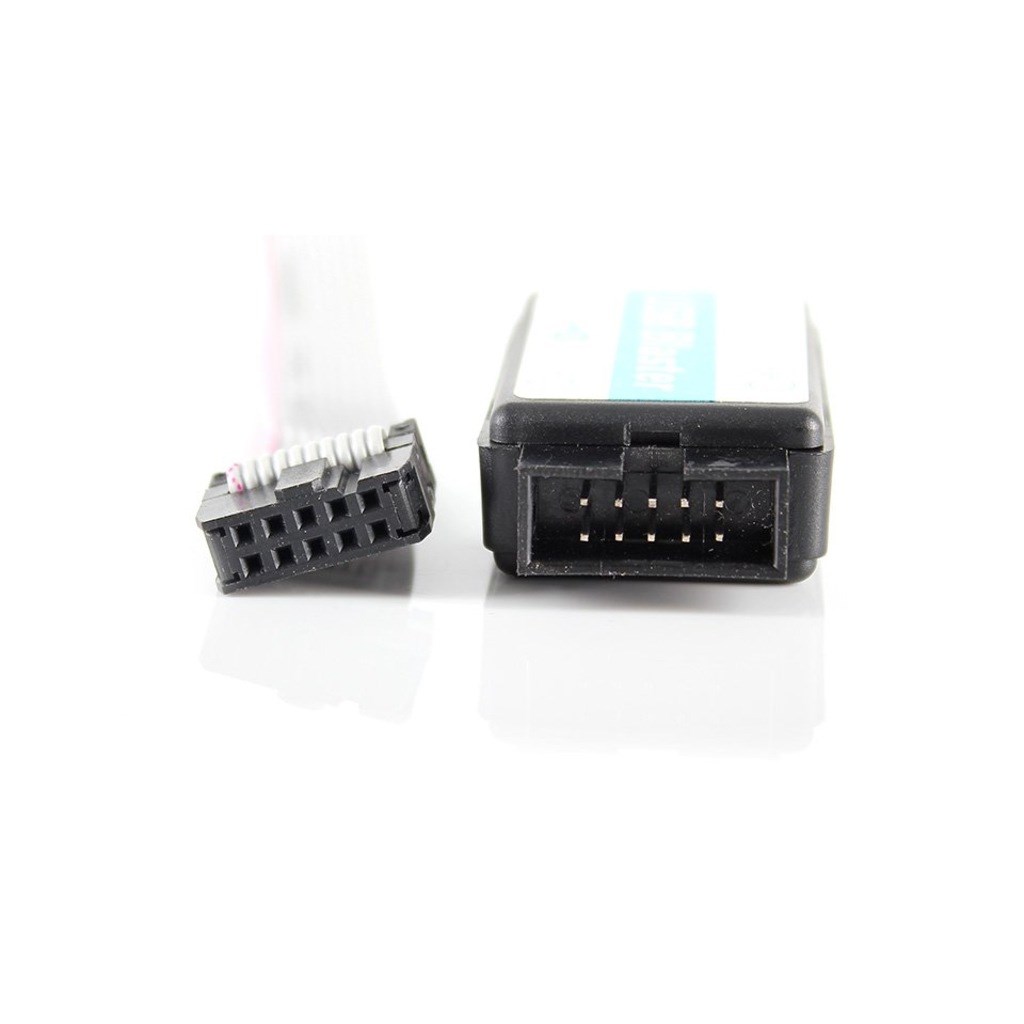

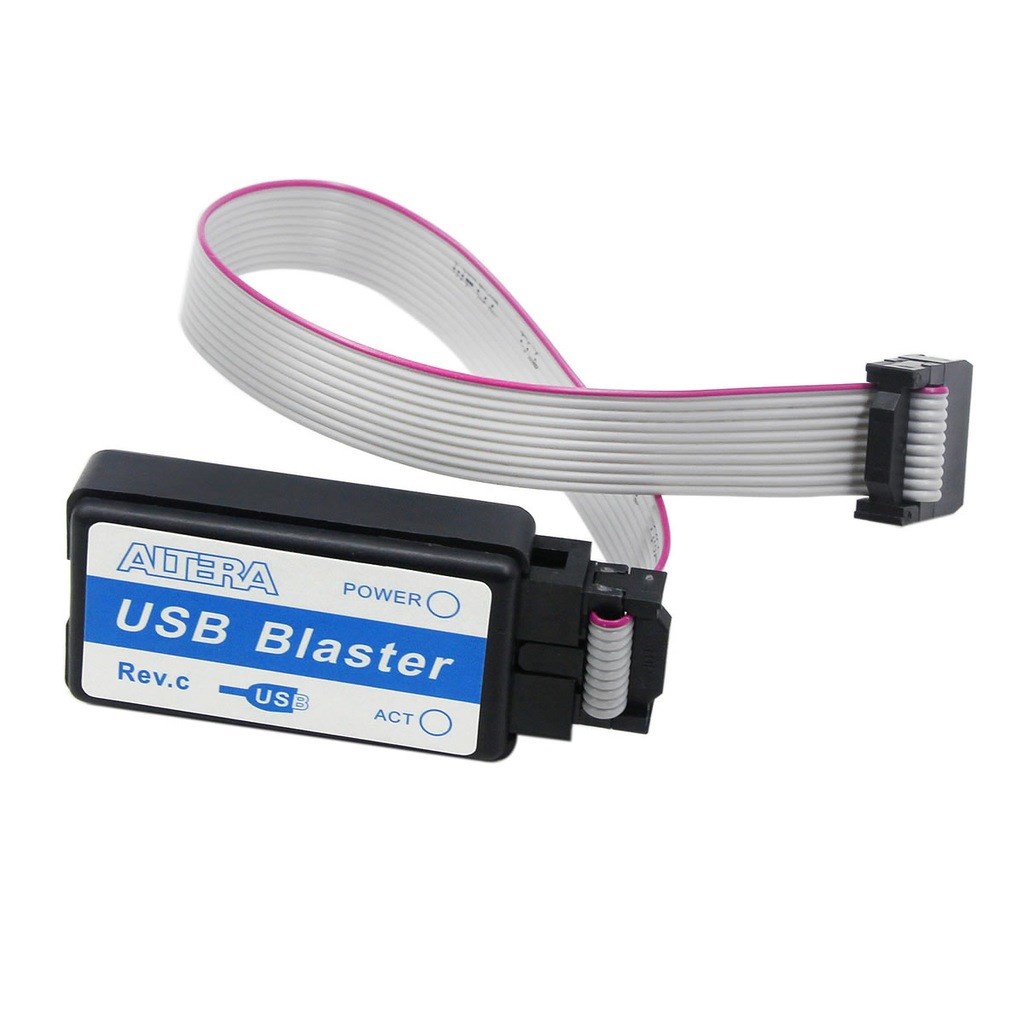

•      1 adet 2X5 Flat kablo
